SCORPIO: Long-slit SCORPIO long-slit gallery.

Here some spectra obtained on the 6m telescope with SCORPIO in long-slit mode. Click on images for enlarger.

Spectra of radio sources from Zelenchuk survey (Amirkhanian et al.,1992)) were carry out with low-resolution grism 300 gr/mm. Spectral range 3600-9600 A, dispersion 5-7 A/px.

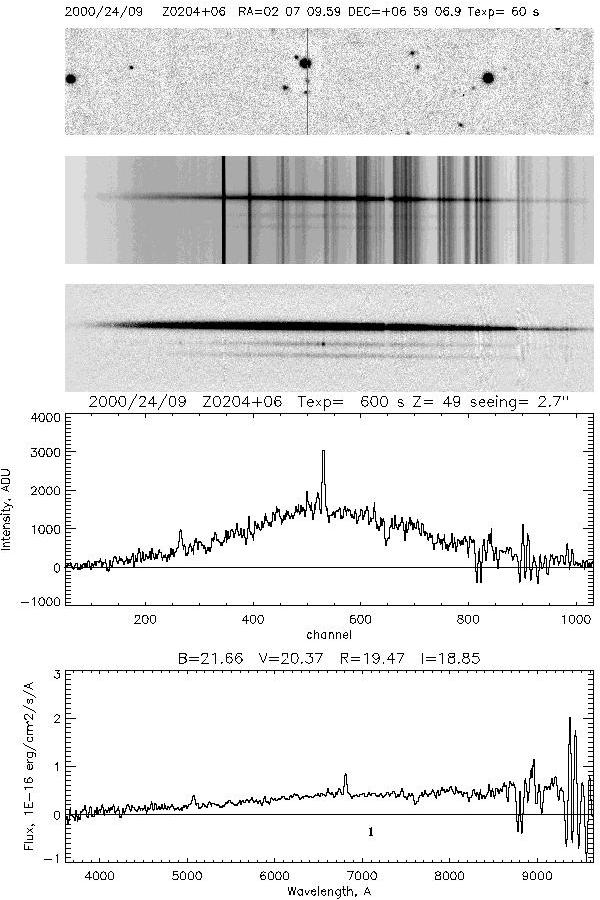

The object 0204+06 (R=19.5 mag) was observed in September, 23 2001. Seeing=2.5". Texp=2x300 sec

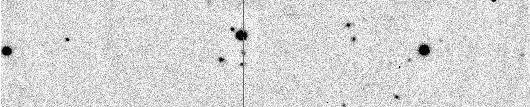

Setting slit on the object

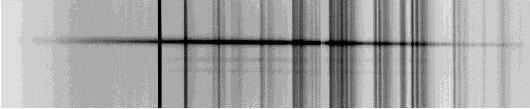

Total spectrum

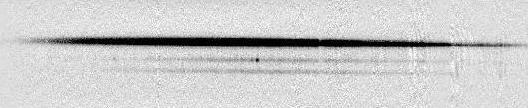

Subtraction of night-sky lines

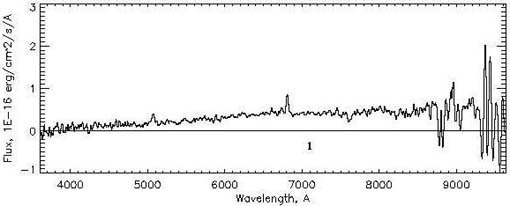

Spectra energy distribution in the central object

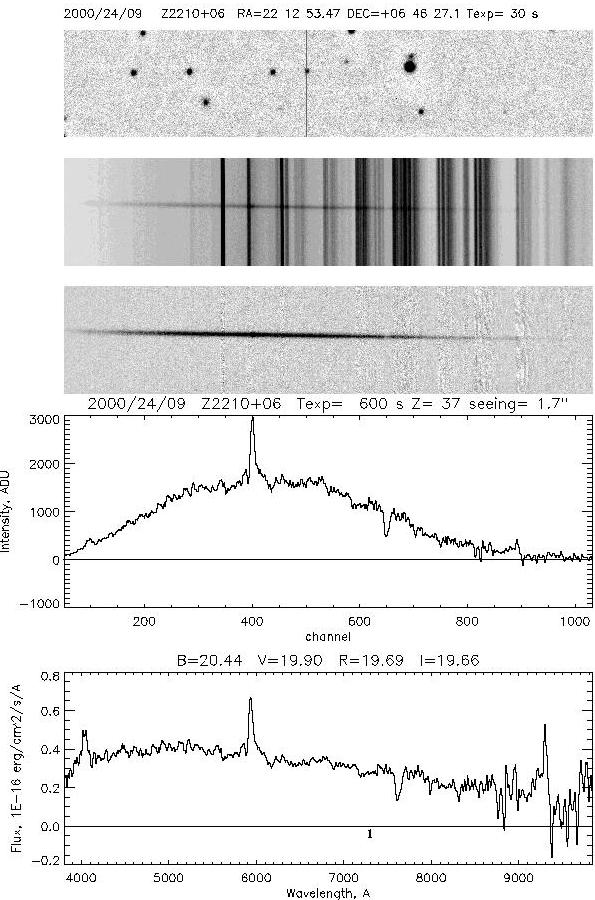

The object Z2210+06 (R=19.7 mag) was observed in September, 24 2001. Seeing=1.7". Texp=2x300 sec
Setting slit on the object

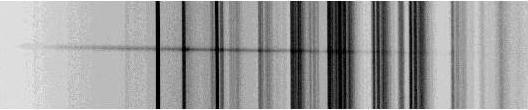

Total spectrum

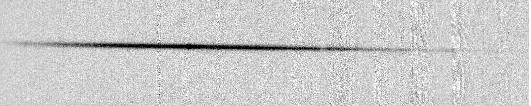

Subtraction of night-sky lines

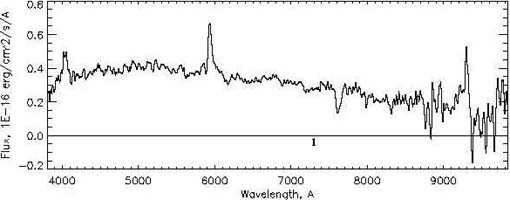

Spectra energy distribution in the object
